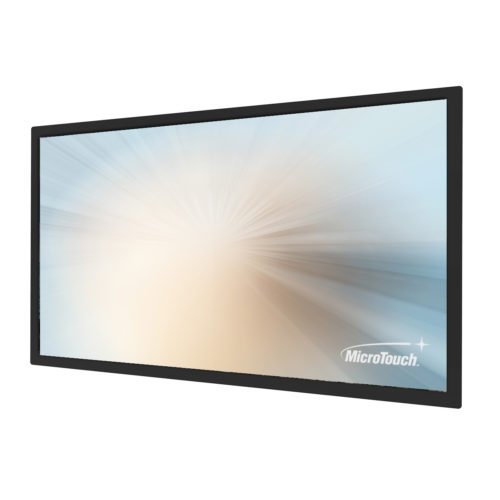

MicroTouch Open Frame Touch Displays (10″-32″)

Introducing Microtouch Open Frame Touch Displays

Enhanced Collaboration and Engagement

The Microtouch Open Frame range offers Full HD (1920 x 1080) PCAP touch displays with up to 30-point touch capabilities. These displays foster effective user collaboration and engagement in various environments, from collaborative settings to embedded applications like point-of-service kiosks, wayfinding, and content sharing.

 Sleek Design and Versatile Performance

With an ultra-slim build and a slim 20 mm bezel design, these displays combine aesthetics with performance. The high contrast and input/output versatility ensure that they exceed all your aesthetic and performance requirements.

Featured Specifications:

• TFT LCD
• Maximum Resolution: 1920 x 1080
• Brightness: 500 nits (No Touch), 450 nits (P-CAP)
• View Angle: H:178°, V:178°
• Video Port: 1 x VGA, 1 x DP, 1 x HDMI 1.3

Specifications:

Touch LCD Display:

• Touch Screen: Projected Capacitive
• Touch Points: 30
• Touch Screen Interface: USB-HID (Type B)

I/O Ports:

• Serial Port: N/A
• USB Port: 1 x USB 2.0 (Type B) for Touch Interface (USB-HID)
• Video Port: 1 x VGA, 1 x DP, 1 x HDMI 1.3
• Audio Port: N/A
• Power Input: 1 x AC Power Input

Physical Properties:

• Power Supply: AC Input 100240VAC, 5060Hz
• Speaker: N/A
• Housing Color: Black
• Construction: Glass, SECC Metal
• Compliance: Front Panel IP65 Compliant

Safety:

• Certifications: CE, FCC, UL/CUL, CCC, RoHS

Environment:

• Operating Temperature: 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing
• Storage Temperature: -20°C ~ 60°C, 20% ~ 90% RH. Non-Condensing

Optional Peripheral:

• Remote Key: N/A

Conclusion: The Microtouch Open Frame Touch Displays offer sleek design, versatile performance, and enhanced collaboration features, making them ideal for various applications across different environments. Available in sizes ranging from 10 to 32 inches, these displays cater to diverse user needs.
