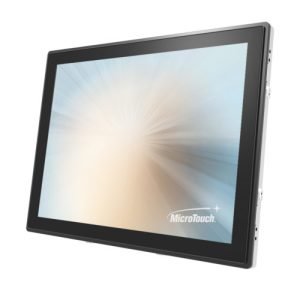

MicroTouch 15” Open Frame Touch Display (USB Interface)

£705.00

Multi-touch display
Open-frame chassis
Durable glass front
Flush surface design

We Can Help With

Competitive Pricing for Larger Projects

Benefit from volume discounts and project pricing across a wide range of products and solutions.

Fast Delivery from UK Stock

Many of our products are held in UK stock, helping reduce lead times and keep your projects on schedule.

See Before You Invest

Request evaluation units or arrange an on-site demonstration to ensure the solution is the perfect fit for your environment.

Visualise Your Solution Before Deployment

Free renderings for digital signage and kiosk projects, helping you confidently plan and present your solution before installation.

Tags: Industrial Retail System IntegratorsCategories: Commercial Display Monitors, Commercial Displays, Kiosk Components, Monitors & All-in-Ones, Monitors & Touch Monitors, Open FrameSKU: OF-150S-B1(B2)

DESCRIPTION

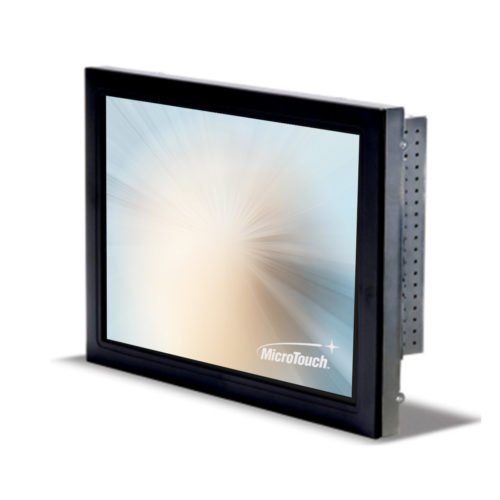

The OF-150S-B1(2), a robust metal chassis display using industry-standard surface capacitive touch technology, provides a durable, optically enhanced, and cost competitive alternative to 5-wire resistive displays used in industrial automation equipment and kiosk enclosures. The OF-150S-B1(2) display offers multiple mounting options to make integration easy and a variety of bezel options for sealing against liquids and other contaminants. A remote on-screen display module helps simplify any changes to the display image during installation or system maintenance.

FEATURED SPECIFICATIONS

Size: 15″ TFT LCD
Maximum Resolution: 1024 x 768
Brightness: 250 nits (No Touch), 225 nits (P-CAP)
Video Port: 1 x DVI-D

SPECIFICATIONS

TOUCH LCD DISPLAY

Touch Screen: Surface Capacitive

Touch Points: Single Touch

Touch Screen Interface: USB (11-71315-225-01 | B1) or Serial (11-71315-227-01 | B2)

I/O PORTS

Serial Port: 1 x RJ45

USB Port: 1 x USB Type B

Video Port: 1 x 15 Pin D-Sub

Audio Port: –

Power Input: 1 x 12V DC or 110/220V AC

PHYSICAL PROPERTIES

Speaker: –
Housing Color: Silver
Construction: Glass, Plastic (ABS), SECC Metal
Compliance: IP66/NEMA 4X (industrial bezel)
Dimensions (W x H x D) mm: 350.4 x 277.3 x 50
Net Weight (kg): 4.2
Gross Weight (kg): 9.2
Carton (W x H x D) mm: 445 x 381 x 165
VESA: 75 x 75mm

SAFETY

Certifications: FCC B, CE, UL/cUL

ENVIRONMENT

Operating Temperature: 0°C ~ 40°C, 20% ~ 90% RH. Non-Condensing

Storage Temperature: -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing

OPTIONAL PERIPHERAL

Industrial Bezel: IB-150-A1 (29368)
