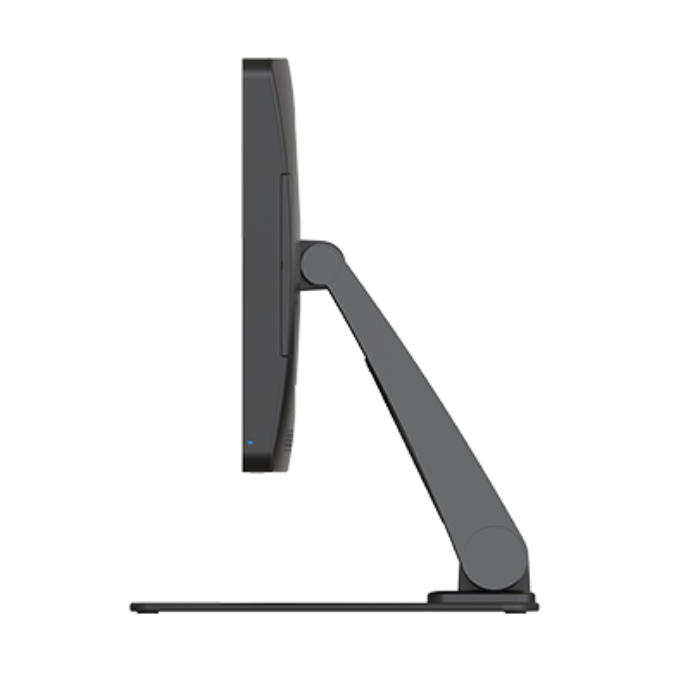

M1-156DT-A1 15.6″ MicroTouch MACH PCAP Touch Monitor
Built for Precision, Designed for Impact. Here's why the Mach desktop touch screen stands out:
- Size: 15.6″ TFT LCD
- Maximum Resolution: 1920 x 1080
- Contrast Ratio: 1000:1
- Aspect Ratio: 16:9
You may also like…
£412.00
£279.00
£683.00
Commercial-grade 15.6″ MicroTouch MACH PCAP Touch Monitordesktop touch display
The 15.6″ MicroTouch MACH PCAP Touch Monitor is a premium all-in-one display designed for professional environments requiring responsive multitouch, slick visuals and rugged reliability. With a full-HD 1920×1080 panel, optical bonding, 10-point projected-capacitive touch, etched anti-glare surface and commercial-grade build, this monitor is built for retail POS, kiosks, hospitality self-service terminals, industrial control and more.
Crisp visuals & durable front-glass
The 15.6″ display offers full HD resolution with a contrast ratio of approximately 1000:1 and wide viewing angles (178° horizontal/178° vertical). Brightness ratings for this class are around 450 nits without touch and 400 nits in touch mode, ensuring clarity even in bright ambient lighting. Surface treatment includes etched anti-glare and optical bonding to reduce reflections and enhance touch accuracy and durability.
Advanced touch & connectivity features
With 10-point PCAP (projected capacitive) touch, users can perform gestures, multi-finger interactions and collaborative input with a responsive experience. The monitor includes HDMI video input, USB-C (ALT Mode) and multiple USB-C peripheral ports in some variants – enabling modern device connectivity and streamlined system integration.
Built for heavy usage in commercial settings
This monitor is intended for continuous use. The front panel meets IP65 protection in some versions (front only) and an IK07 ball-drop rating in others, indicating it’s built to endure rugged environments. Warranty coverage is typically 3 years.
Ideal applications
-
Retail checkout counters and self-service kiosks
-
Hospitality check-in / ordering terminals
-
Industrial operator workstations requiring touch input
-
Interactive customer displays and digital signage with touch interface
-
Education labs and public-use terminals where durable touch displays matter
Specification Snapshot
|
Display size |
15.6″ TFT LCD, 16:9 aspect ratio |
|
Resolution |
1920 × 1080 (Full HD) |
|
Brightness |
~450 nits (no touch) / ~400 nits (PCAP) |
|
Touch technology |
Projected capacitive (PCAP), 10 touch points |
|
Surface treatment |
Optical bonding + etched anti-glare glass |
|
Connectivity |
HDMI, USB-C (ALT Mode) and multiple USB-C peripherals (varies by model) |
|
Build & protections |
Some versions: IP65 front, IK07 ball drop rating |
|
Warranty |
3 years standard in commercial spec |
